Receipt Printers
Linked to computers and POS Terminals, receipt printers are used by banks, restaurants, supermarkets, hotels, etc to print receipts that authenticate customers’ cash payments and deposits. Receipt printers come in dot matrix forms (i.e. uses ink ribbons and paper rolls); and thermal forms (no need for ink. Uses just paper rolls).
POS Shop Ltd stock the STAR Micronics EMEA range of receipt printers – TSP 100, TSP 700II, SP 700, etc.

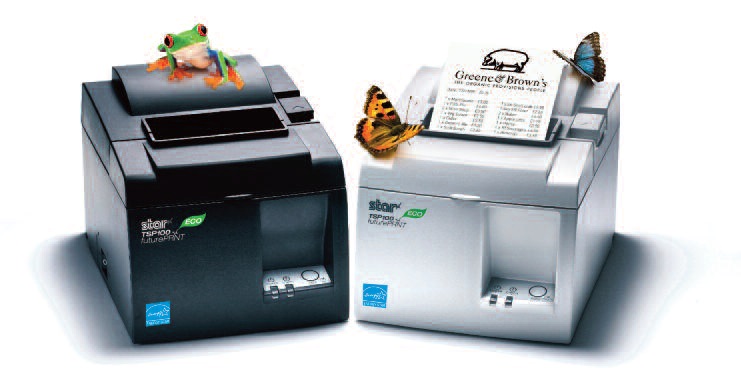

Fast, reliable, easy to use and easily integrated into current systems, the STAR TSP 100 is the perfect receipt printer choice for self service, retail stores, fast foods, and delivery services. The STAR TSP 100 comes in five variants:
TSP100U – printer with USB interface
TSP100ECO – printer with dedicated eco features
TSP100USB – printer with powered USB interface
TSP100GT – printer with USB interface and high gloss casing
TSP100LAN – printer with ethernat interface
FEATURES
-Two colour output for emphasis using two specialist colour paper
-Selectable virtual serial port emulator
-Port for cash drawer/peripheral drive circuit
-Easy load “drop in and print” paper loading
-Tearbar and autocutter versions
-Robust high speed guillotine cutter for increased reliability
-Full speed USB interface
-Have option of a splash proof cover for extral protection
-Have option of display fo vertical use
-80mmx72mm paper print output
BENEFITS
-Design receipts according to taste inputing logo and graphics
-Receipts can be designed using different fonts
-Inputs automatically promotional or marketing material on receipts for a particular customer or set of customer each time their names are called up on the system
-Determine number of copies of receipt to be printed
-Specify the texts and graphics to be printed per copy of receipt.
SPECIFICATIONS
|
TSP100U,TSP100USB,TSP100LAN,TSP100ECO, TSP100GT |
|
| Print Method | Direct Thermal Printing |
| Traditional Print Speed | 125mm/second: TSP100U,TSP100USB,TSP100LAN
150mm/second: TSP100ECO 250mm/second: TSP100GT |
| Print Colour | Charcoal Grey, White |
| Print Resolution | 203 dpi (8 dots per mm) |
| Two Colour Print Capability | Red & Black, Blue & Black (special paper needed) |
| Logo Store Capacity | Unlimited |
| Drivers Available | Windows7/Vista/XP/XPEmbedded/WePOS/CE.
Windows 98/ME/NT4. Linux, Mac OSX, OPOS, Java-POS, CUP5, POS for Net. USB Vendor Class : Star IO |
| Dimensions | 142mm (W) x 204mm (D) x 132mm (H) |
| Print Head | 100km |
| Guillotine Cutter | 1 million cuts |
| MCBF | 60 million lines |
| Line Spacing | 3mm or 4mm + programmable |
The Star TSP700II is a receipt printer that is ideal for high volume retail establishments like grocery stores, healthcare, restaurants and banking due to its high speed and multifunctional abilities.
FEATURES
– Ultra high speed of 250mm/sec (48 receipts per minute)
– Ultra high class- leading reliability
– Paper thickness of up to 0.15mm
– Swappable interfaces : serial, parallel, USB, PUSB, LAN
– Black mark label support
– Rear paper feed
– Vertically mountable
BENEFITS
– “Drop in and print” easy load
– Its multifunctional ability makes it suitable for printing receipts, labels,
tickets, or barcodes.
– Its head design offers darker print
– Low noise during printing
– Has two paper low sensors, one for horizontal use and the other for vertical use.
SPECIFICATIONS
| STSP700II | |
| Printer Mathod | Direct Line Thermal |
| Printer Speed | 48 receipts per minute (250mm/sec) |
| Printer Case Colour | Putty or Gray |
| Print Resolution | 203×203 dpi; 406x203dpi |
| Model Available | Autocutter |
| External Paper Feed Support | Yes |
| Cover Open Sensor | Yes |
| Multiple Copy Support | N/A |
| Journal Capability | N/A |
| Digitally Signed | Yes |
| Swappable Interfaces | Yes |
| Connectivity | Serial, Parallel, USB, Powered USB, Ethernet,
Virtual Serial Port to USB, Virtual Serial Port to Ethernet |
| Label Support | Yes (black timing marks between labels required) |
| Logo Store Capacity | 2 Mbit Flash ROM with Graphic Management Software |
| Font Size | 12×24 |
| Line Spacing | 3mm or 4mm or programmable |
| Maximum Print Width | 80mm paper=72mm,
82.5mm paper=80mm, 58mm paper=52mm |
| Dimensions | 147mm(W) x 213mm(D) x 148mm(H) |
| Weight | 1.75kg |
| Reliability MCBF | 60 million cuts |
| Autocutter | 2 million cuts |
| Peripheral Drive Circuit | 2 circuits, (24V max – 1A),1 Compulsion input |
| Power Consumption | Average 1.8AMP Printing, 0.15AMP Standby. Requires PS 60A external power supply |
| Drivers Available | Windows XP 32 Bit,Vista 32/64 Bit,Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS, JavaPOS, USB Vendor Class, Linux, Mac OSX, StarlO SDK |
SP700
Star SP700 is a dot matrix printer that has all the features of a thermal printer in addition to its own unique features. Its splash resistant design makes it the ideal choice for heavy duty kitchen and bar applications. The SP700 is great for use in retail environments, fiscal environments, hospitality
FEATURES
– “Drop in and Print“ easy load for paper and ribbon
– Internal Power supply
– Wall mount option
– Buzzer alarm option
– Splash resistant cover
BENEFITS
– Prints till number, time and date information on receipts
– Faster processing speed
– Queue management
– Stores up to 225 graphics, mono or colour gifs, jpgs, or bmps imported and named.
– Prints two colour receipts – black and red
– Can be used horizontally or vertically
SPECIFICATIONS
| SP700 | |
| Printer Method | Matrix |
| Print Speed | 4.7 to 8.9Ips(13 receipts per minute) |
| Printer Case Colour | Grey or white |
| Models Available | Tearbar, Tearbar+Rewind, Autocutter, Autocutter+Rewind |
| Connectivity | Serial, Parallel, USB, or No interface, Ethernet, WiFi, Virtual Serial Port with USB, Virtual Serial Port with Ethernet |
| Cover Open Sensor | 2 |
| Font Size | 13 x 20 |
| Dimensions | 160mm(W) x 245mm(D) x 152mm(H) |
| Weight | 3.65kg max depending on model |
| MCBF | 22 million lines |
| Autocutter | 1.5 million cuts |
| Drivers Available | Microsoft applications including JavaPOS, OPOS with Vista WHQL certification |
